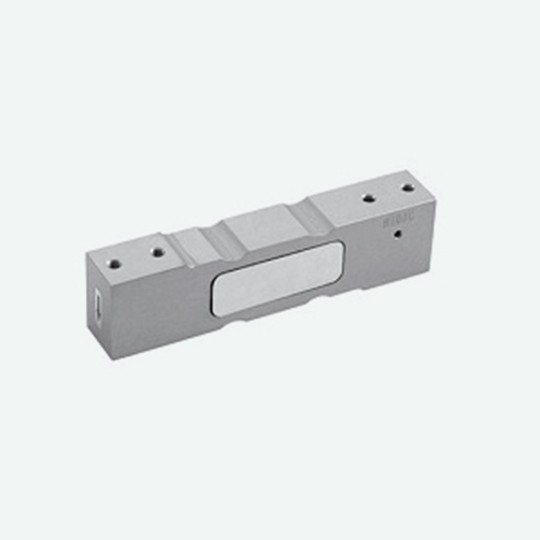

Transcell FASB铝制单点式传感器
● 优质铝合金材质
● 高精度
● 高稳定性
● 安装简便、快速
● 适用于包装秤和配料系统等
Capacities 量程
▪ 60/100/150/200/250/300/350kg
灵敏度：2.0mV/V
防护等级：IP67
产品介绍 Introductions:
Specification 技术参数
Rated Output | 额定输出 | 2.0mV/V ±10% |
Zero Balance | 零点平衡 | ±3% of rated output |
Creep after 30 minutes | 蠕变 | ±0.03% of rated output |
Nonlinearity | 非线性 | ±0.03% of rated output |
Hysteresis | 滞后 | ±0.03% of rated output |
Repeatability | 重复性 | ±0.03% of rated output |
Temp. effect on output | 灵敏度温漂 | ≤0.002% of applied output/ºC |
Temp. effect on zero | 零点温漂 | ≤0.002% of rated output/ºC |
Safe Temp. Range | 可用温度范围 | -10ºC to + 70ºC |
Temp. Compensated | 温度补偿范围 | -10ºC to + 40ºC |
Safe Overload | 安全载荷 | 150% |
Input Impedance | 输入阻抗 | 410 ohm ± 20 ohm |
Output Impedance | 输出阻抗 | 350 ohm ± 5 ohm |
Insulation Resistance | 绝缘阻抗 | ≥5000 M ohm (50V DC) |
Rated Excitation | 推荐激励电压 | 10V DC/AC |
Maximum Excitation | 最大激励电压 | 15V DC/AC |
Cable Length | 导线长度 | 10m |
Cable Color Code | 导线颜色 | Red(+E) Black(-E) Green(+S) White(-S) |
